PV-ULTRA CABLE - Shop
This cable is designed to meet the requirements of the DC interconnections between the solar panels and the other components of the photovoltaic system, such as the isolators and invertors.
Products In This Category:
PV-Ultra® provides excellent mechanical properties, can be installed both internally and externally, and has been designed with high quality materials to achieve an anticipated lifespan of circa 25 years.
The cables are designed to operate at a normal maximum conductor temperature of 90°C, but for a maximum of 20,000 hours a max. conductor temperature of 120 °C at a max. ambient temperature of 90°C is permitted.
PV-Ultra® has red and white core colours to comply with the latest requirements of BS7671 with regards to two-wire unearthed DC power circuits (BS7671 Table 51).
The double insulation of PV-Ultra® ensures that the electrical equipment up to the DC connection of the PV inverter is Class II or equivalent insulation (as specified in
BS7671 Clause 712.412.101).
PV-Ultra® is a multicore DC solution that previously was solved by a multicore armoured cable. These multicore armoured cables are no longer recommended for use on the DC side of the installation. PV-Ultra® can now serve as a direct replacement allowing for a compliant multicore solution.
The double insulated conductors are particularly suitable for use at the direct current (d.c.) side of the photovoltaic system, with a nominal d.c. voltage of 1.5kV between conductor and between conductor and earth. Due to the double insulation these cables are suitable to be used with Class II equipment (meeting the requirement of BS7671 Clause 712.412.101 which states that the electrical equipment up to the DC connection of the PV inverter shall be Class II or equivalent insulation).

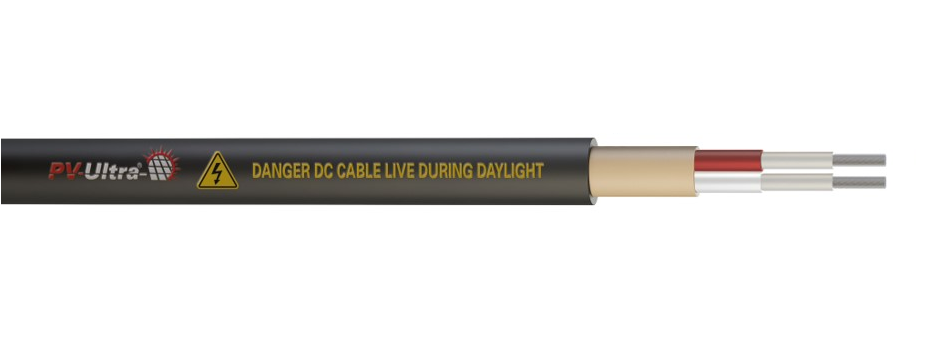

The double insulated conductors are enclosed in a CarbonTek® bedding, to give even more electrical protection against the steel wire armour (where applicable), with a final outer sheathing of SolarTek® PVC being applied to all variants of the cable (steel wire armoured or not).
PV-Ultra® is aesthetically similar to a mains power cable, as opposed to being similar in appearance to a coaxial cable. Which reduces the probability of homeowners/electricians/DIYers accidently cutting a live d.c. cable.
PV-Ultra® also includes a yellow warning print that further highlights the hazard that these cables are live during daylight hours.
